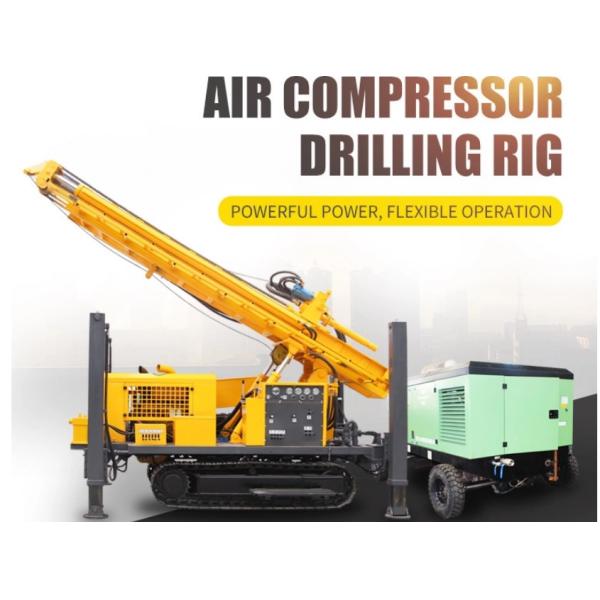

Track Mounted Pneumatic All Terrain Drilling Rig African Drilling
Product Overview
ST-450 Pneumatic All Terrain Drilling Rig is a lightweight, efficient and multifunctional drilling equipment. This water well drilling rig is mainly applicable to industrial and civil drilling, geothermal drilling, and features compact structure, fast advancing, mobile flexibility and wide application region. The pneumatic well drill is especially suitable for water intake in mountainous and rocky strata.
Technical Specifications
| Parameter |
Value |
| Weight of whole machine |
10T |
| Drilling caliber |
105-325mm |
| Drilling depth |
450m |
| One-time push length |
3.4m |
| Walking speed |
2.5km/h |
| Climbing ability |
Max. 30° |
| Power of main machine |
75.8kw |
| Working pressure |
1.7-3.0mpa |
| Air consumption |
17-35m³/min |
| Diameter of drill rod |
76, 89, 102mm |
| Length of drill rod |
1.5, 2.0, 3.0m |
| Lifting force |
18T |
| Air pressure |
1.25-3.5Mpa |
| Rotation torque |
7700/3850N.m |
| Dimension |
6.4m×2.1m×2.6m |
Key Features
- High working efficiency: Full hydraulic and top drive rotary drilling adapts to various drilling technologies and tools with convenient control, fast drilling speed, and short auxiliary time
- Low cost: DTH hammer rock drilling operation provides high efficiency with lower per-meter drilling costs
- High leg crawler type: Easy loading and unloading without crane assistance; crawler walking adapts well to muddy field conditions
- Oil mist system: Lubricated impactor extends service life and reduces drilling costs
- Flexible chassis: Available in crawler chassis or truck-mounted chassis configurations
- Track type multipurpose water well drill rig with all-new design for high efficiency in various applications
- Premium configuration with domestic and international components for reliability
- Hoist and winch capable of lifting up to 1500kg, reducing operator workload
- Tramming motor with large torque for free movement between work sites
- Feeding and lifting with adjustable speeds for higher drilling efficiency
