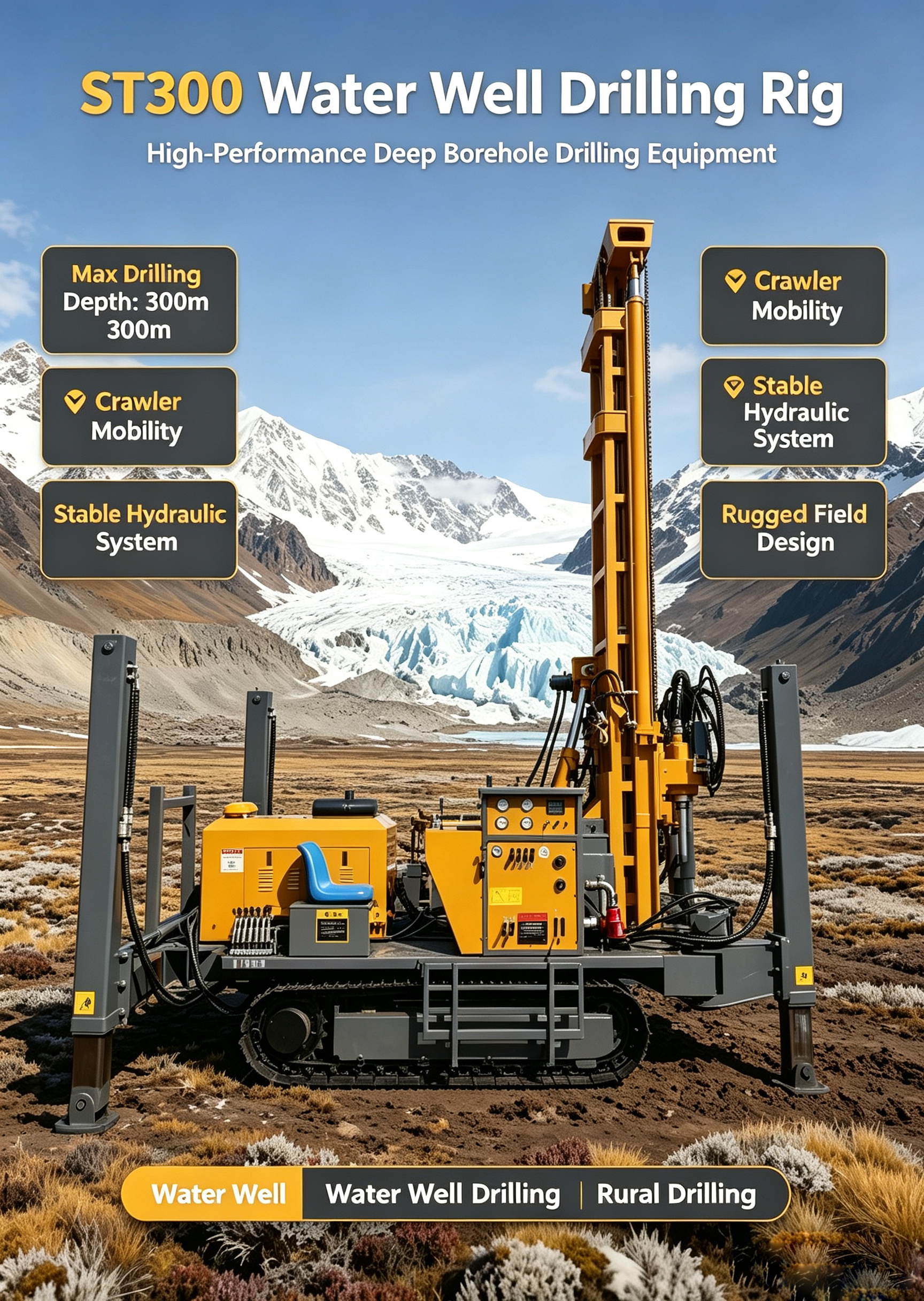

Crawler Mobile Full Hydraulic Control Pneumatic Drilling Rig 300m Depth For Mountain Farm Irrigation
Product Overview
The ST 300 drilling rig is an efficient and multifunctional borewell machine with 300 meters drilling depth capability. Designed for commercial water well applications, it excels in mountainous terrain and rocky strata conditions.
Technical Specifications
| Attribute |
Value |
| Product Name |
ST 300 Steel Crawler Mounted Commercial Water Well Borewell Machine Equipment |
| Drilling Depth |
300 Meters |
| Model Number |
ST-300 |
| Hole Diameter |
140-325mm |
| Power |
84KW |
| Walking Speed |
2.5KM/H |
| Climbing Angle |
30° |
| Rig Lifting Force |
20T |
| Certification |
ISO, CE, SGS, TUV, BV |
| Warranty |
1 year |
Key Features
- Hydraulic technology with high torque hydraulic motor rotation
- Large bore hydraulic cylinder push system
- Multi-cylinder engine from renowned manufacturers
- Capable of drilling in various geological conditions
- Borehole diameter up to 245-294mm
- Fast drilling speed with minimal breakdowns
- Easy repair and maintenance
- Excellent off-road capability
Applications
Widely used for drinking water wells, farm irrigation wells, construction and mining drilling works in hard rock and mountain areas.
Operation Method
The drilling rig operates using reverse circulation with a mud pump system. Circulating fluid flows from the sedimentation tank to the well bottom through the annular gap, while the rotary table drives the drill pipe and bit. Negative pressure created by the mud pump removes debris through the drill pipe's inner cavity, completing the efficient reverse circulation process.
Geological Layer Solutions
When encountering different geological layers during drilling, specialized methods ensure optimal results. For gypsum layers, calcium removal techniques using soda ash and viscosity reducers maintain drilling efficiency. The system adapts to various strata including quicksand layers with appropriate countermeasures.
