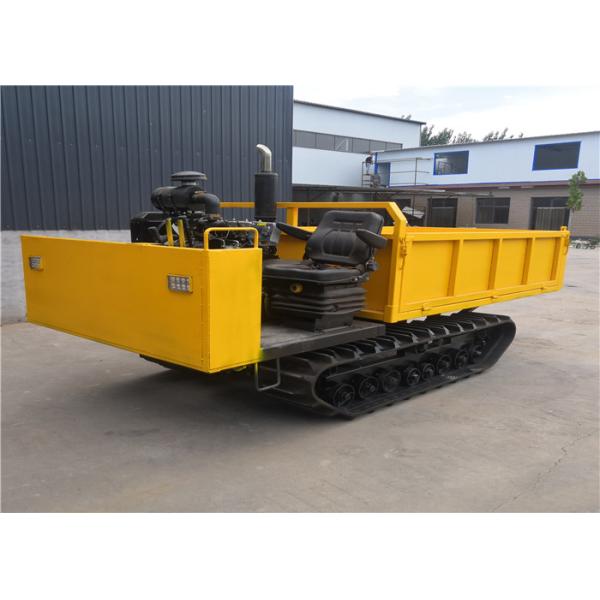

Hydraulic 4 Ton Track Transporter 5000mm Self Loading Crawler Type

Price : Negotiation

keywords : 4 Ton Track Transporter

Application : Farm, Mining, Transport

Model Number : 4T

Brand Name : ShiTan

Delivery Time : Within 7-12 days

Transmission Type : Automatic

MOQ : Negotiation

Payment Terms : L/C,D/A,T/T,Western Union

Certification : ISO9001 CE

Color : Customised

Tire : crawler-type

Place of Origin : China

Contact Now

4 Ton Track Transporter 5000mm Self Loading

Product Overview

4 ton rated load hydraulic crawler dumper designed for heavy-duty material transport in challenging terrain conditions.

Applications

This hydraulic crawler dumper is widely used in agriculture, mining, water conservancy, and other large to medium-scale projects for transporting earth, rock, coal, and various materials. Available in light and heavy-duty configurations based on rated load capacity.

Key Features

Operates effectively in mud and icy road conditions
Self-unloading design with tracked walking and motorized operation
Customizable dimensions to meet specific requirements
High load capacity with excellent climbing ability
Simple operation and easy maintenance

Technical Specifications

Specification	4 Ton Model
Dumper truck weight	3000 kg
Maximum load capacity	4000 kg
Maximum grade ability	30°
Total dimensions	3700 × 1750 × 1850 mm
Hopper dimensions	2200 × 1750 × 600 mm
Track shoe width	320 mm
Track length	5000 mm
Track height	575 mm
Track outside width	1600 mm
Track inside width	960 mm
Track pitch	56 mm
Number of tracks	90 pieces
Track grounding length	1730 mm
Track type	Mechanical engineering rubber tracks
Engine model	WEICHAI POWER 4105
Cylinders	4 units
Horsepower	82.2 HP
Engine power	60 kW
Overturning cylinder	Single/double cylinder
Hydraulic oil cylinder	105 mm
Bore stroke	750 mm
Gears	Three forward gears and one reverse gear
Floor plate thickness	4 mm
Side plates thickness	3 mm
